P R O D U C T I N F O R M A T I O N

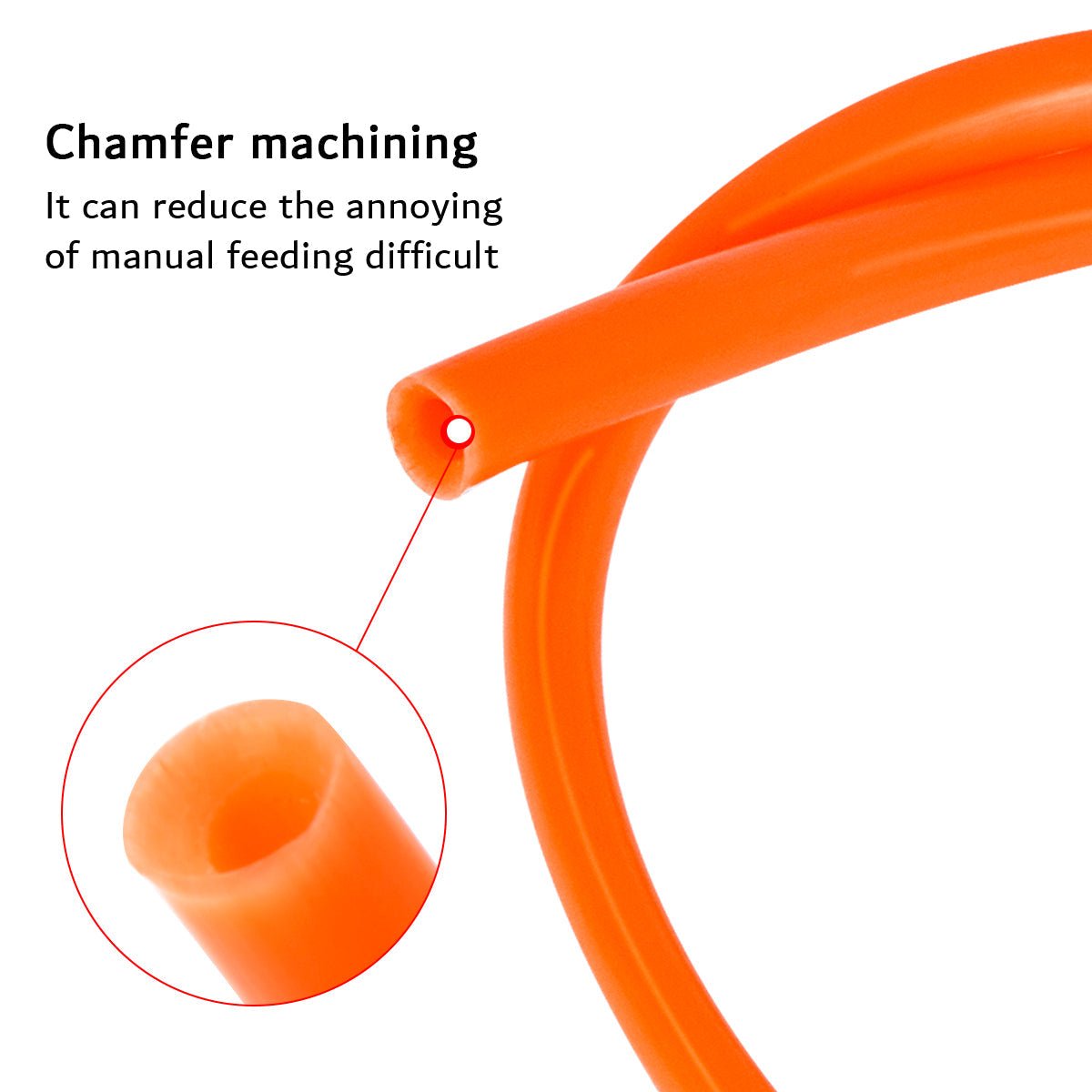

Our bowden tubes made from the pure virgin PTFE, so it always has good flexibility, abrasion resistance, chemical resistance.
Compatible with all 1.75mm PLA ABS 3D printer. 1.9mm ID reduces the "wiggle room," or buckling, allowing you to print flexible filaments even on the longest Bowden systems.
Heat resistant up to 275℃, See our picture for more details.
- Bowden PTFE Tubing
- Material: PTFE (Poly Tetra Fluoro Ethylene)，Density: 2.15-2.20g/cm3 Heat resistance, up to 275℃
- Outside Diameter: 4mm, Inside Diameter: 1.9mm ±0.05mm
- Color: orange
- Length: 1.2m
- PC4-M6 Fittings
- PTFE Tubing OD: 4mm
- Thread: M6/3mm
- Material: Copper, Plastic
- It supports turn 360 degree freely, easy to disassemble
- Widely use for connecting Bowden extruder , PTFE fittings
Easy to Disassembly
Press and hold the blue or black part of the quick fitting and pull out the tube.
Attention: Small parts, keep away from children.
1.2M PTFE Tube(1.9mm±0.05mm ID/4.0mm OD) *1
PC4-M6 Fittings *2
